Light Engines

LED Module StripAngle2.jpg
LED powerful, bright, economic

Designed for endoscopic usage, the LED Light Engine is the heart of the Sunoptics line of LED lightsources and unique to Sunoptics design. Our LED Light Engines are available in three base models: LE-2000, LE-3000, and LE-4500, offering you multiple levels of light output and control, when combined with supplemental option packages. All light engines are available in single-port or four-port turret configuration (ACMI, Wolf, Storz, Olympus).

LED Engine for OEM  white label

LE-2000 LED Light Engine

  • CCT ~ 7000°K

  • Typical LED life – 30,000 hours LE-2000

  • CCT ~ 6500°K

  • Typical LED life – 50,000 hours

  • Basic engine includes: LED with integral thermistor, heat sink, fan, optics, turret base and mounting in a fully assembled module.

  • Options include: universal power supply, dimming controller, thermal cut-off switch, single port or turret assembly, and mounting chassis.

LE-3000 LED Light Engine

  • CCT ~ 7000°K

  • Typical LED life – 30,000 hours LE-2000

  • CCT ~ 6500°K

  • Typical LED life – 50,000 hours

  • Basic engine includes: LED with integral thermistor, heat sink, fan, optics, turret base and mounting in a fully assembled module

  • Options include: universal power supply, dimming controller, thermal cut-off switch, single port or turret assembly, and mounting chassis.

LED Engine for OEM private label
Private label light engines

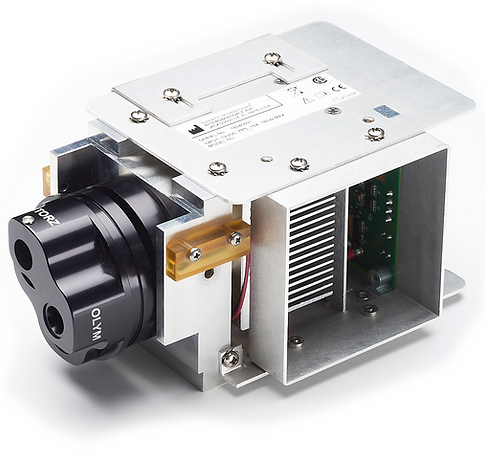

LE-4500 LED Light Engine

  • Bright White LED Light

  • Essentially emits no ultraviolet or infrared radiation, therefore no filtering is required

  • Accepts 12VDC input voltage

  • Accessory power 5VDC @5mA

  • Local ambient operating temperature 0 to 40°C.

  • Required minimum 20 CFM airflow

  • Fixed or user configurable LED current

  • Engine chassis is electrically isolated and may be referenced to application chassis

  • Optically isolated interface

  • High frequency PWM dimming up to 32kHz to eliminate video flicker

  • Accepts arbitrary dimming waveform for video synchronization or “timing light” applications

  • Thermal sensors allow monitoring LED and electronic temperatures

  • Sensor detects presence of fiber optic endtip when inserted into port.

  • Fan speed feedback and control

  • Compact form factor
