Light Sources

The Sunoptic Technologies family of LED products provide the next generation in lighting. The low power consumption and minimal cooling make for a smaller, lighter and more portable unit as well.



Our Xenon Lightsources provide state of the art lighting technology and ergonomic design. The reliable and efficient light provided from our lightsources is bright, "daylight" quality that enhances tissue color allowing you to get the most out of your time and skill in your demanding environment.

LED 2000: State-of-the-art lighting technology, providing bright and efficient illumination for medical and surgical applicat

LED-2000 LED Light Source

50W Solid State LED Light

• Compact, efficient, durable “daylight” light

• Premium LLS-2000 utilizes new high efficiency design

• Color temperature: 6500° K nominal

• Typical LED life: >50,000 hours

• Low power consumption: 52W typical

• Electronic (PWM) intensity control from 0-100%

• Four-port turret and single port versions available

• Standard ports are ACMI, Olympus, Storz, and Wolf,

other ports available

• Accepts 100-240V AC, 50/60 Hz input power for

  worldwide operation

• Regulatory: UL60601-1, CAN/CSAC22.2 No. 601.1,

  EN60601-1-2; CE marked

• Dimensions: 4.65” W x 3.32” H x 7.25” D (~10” overall)

• Weight: 1.14 kg (2.5 lbs)

LED-3000 LED Light Source

  • Bright White LED Light

  • Essentially emits no ultraviolet or infrared radiation, therefore no filtering is required

  • LED Life - 30,000 Hours

  • Color Temp - 7000 Degrees Kelvin

  • Color Rendition Index (CRI) - 78

  • Compact form factor

  • Dimensions -11.22” W x 4.49” H x 13.23” D

  • Weight - 7.55 lbs / 3.42 kg

  • Robust 4-Port Turret (Acmi, Wolf, Storz, Olympus)

  • Automatic light shutter when cable removed from turret for eye safety.

  • Digital push button dimming control

  • Stand-by button

Sunoptic LED 3000: Advanced lighting technology for medical applications, offering high-performance illumination with precisi
LED 4500: Cutting-edge lighting solution, delivering powerful and precise illumination for advanced medical and surgical appl

LED-4500 LED Light Source

  • Bright White LED Light

  • Essentially emits no ultraviolet or infrared radiation, therefore no filtering is required

  • LED Life - 30,000 Hours

  • Color Temp - 6000 Degrees Kelvin

  • Color Rendition Index (HIGH CRI) - 92

  • Compact form factor

  • Dimensions -11.22” W x 4.49” H x 13.23” D

  • Weight - 7.55 lbs / 3.42 kg

  • Robust 4-Port Turret (Acmi, Wolf, Storz, Olympus)

  • Automatic light shutter when cable removed from turret for eye safety.

  • Digital push button dimming control

  • Stand-by button

X300 Light Source

  • Powerful source of brilliant “daylight” quality light.

  • Color temperature: 5600∞K.

  • Typical lamp life: 1000 hours.

  • Digital Display for light level intensity and lamp hour identification.

  • Removable lamp module with side access port for easy lamp change.

  • Ergonomically designed turret includes ACMI, Olympus, Storz, & Wolf ports.

  • Molded front panel with contrasting graphic overlay with tactile push buttons provides modern appearance with a range of OEM customization possibilities.

  • Input power: 100-120 VAC 50/60 Hz; 220-240 VAC 50 Hz.

  • Regulatory approvals: IEC 60601-1 Edition 3.1, IEC 60601-1-2 4TH Edition

  • marked.

  • Dimensions: 5.5” (13.9cm)H x 13.2” (33.5cm)D x 14” (35.5cm)L

  • Weight: 15 lbs. (6.8 kg)

Sunoptic X300 OEM Console: Cutting-edge medical equipment console, designed for optimal performance and seamless integration
Rover: A versatile and mobile medical device designed for enhanced exploration and examination, providing optimal vi

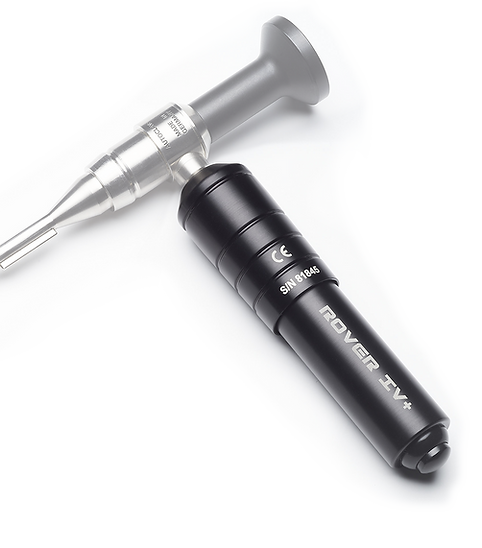

Rover IV+

Portable 3W LED
Lightsource 4th Generation

  • Compact, portable source of brilliant white light.

  • For use with rigid or flexible endoscopes and with lighted retractors.

  • Connects directly to endoscope or retractor via integral light port.

  • ACMI, Wolf or Threaded Port available for standard scope post connection

  • Adapters available for Storz / Olympus and Olympus GP scope connections.

  • Special ports available for flexible fiberscopes that have integral fiberoptic

  • cables, including certain Olympus and veterinary scopes

  • STERRAD™ validated, with special coating for superior color

  • Immersible for disinfection.

  • Delivers brighter, whiter light than conventional “light

  • Color temperature: 5000

  • Push button 3 Position Variable Intensity

  • Fully charged Lithium-ion battery provides

  • Basic configuration includes two

  • FDA Class II device,

  • Private label options include custom laser marking and custom ports.

  • Dimensions: 5.1” (13cm) long; 1.

  • Weight: 5.1 oz. (145g) including

​​

  • Compact, disposable source of brilliant 6000K white light.

  • For use with lighted retractors and small diameter rigid or flexible endoscopes.

  • Connects directly to device via integral ACMI light post.

  • ON/OFF Switch allows for the use of light when needed.

  • Enables untethered operation for easier positioning.

  • Eliminates cost of reprocessing a fiberoptic cable.


  • Light output approximately 70 lumens.


  • 90 minute run time if left on continuously.


  • Packaged Sterile 5 pouches per box.

​

​

Clinical Benefits:
•Eliminate chance of cross-contamination.
•Cost savings by not having to reprocess through decontamination.
•Save time and improve efficiency in the OR.


Essentials:
•Dimensions: 2.5” (6.4cm) long; 1.12” (2.8cm) diameter.
• Weight: 1.1 oz. (31g).
•FDA Class I device
•RoHS, REACH and WEEE compliant.

​

SLS Rover LED
Light Source

Sunoptic SLS Rover: A mobile surgical lighting system providing versatile illumination for medical procedures in various heal
